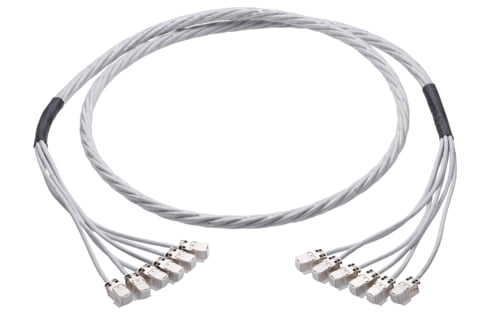

Trunk cable CU PL, Cat. 7, 6x4P single cable & foil, AWG23, Eca, Modul RJ45 Cat. 6a EL/s, -Modul RJ45 Cat. 6a EL/s, 15 (R813793)

Trunk cable CU PL, Cat. 7, 6x4P single cable & foil, AWG23, Eca, Modul  RJ45 Cat. 6a EL/s, -Modul RJ45 Cat. 6a EL/s, 15 (R813793)

Trunk cable CU PL, Cat. 7, 6x4P single cable & foil, AWG23, Eca, Modul RJ45 Cat. 6a EL/s, -Modul RJ45 Cat. 6a EL/s, 15 (R813793)

Wiring diagram: TIA 568-A or B

Leg length: 20 cm

Cable identification: S/FTP

Outer jacket: LSZH

Conductor diameter: AWG 23/1 (solid wire)

Screened in pairs: AL/polyester foil

Overall screen: copper braid

Outer diameter: 22.1 mm

Customized Lengths up to 80 m

Customized Labeling on both ends

Артикул: R813793 Категорія:
Mechanical Data

Color Code RAL

9001 Cream

Cable length

15 m

Technical Data

Number of wires

48

Cable type

Trunk cable

Category

Cat. 7

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

flame retardant

zero-halogen

Stranding

6 x 4 pairs

Wire diameter

AWG 23

Shielding

S/FTP

Cable overall diameter

Ø 1 x 4P, 7.9 mm / 6 x 4P, 22.1 mm

Category connector (A)

Cat. 6A ISO

Category connector (B)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

shielded

Shielding connector (B)

shielded

Max. test frequency

900

PoE

Yes

Standard

IEC 61156-6

ISO/IEC 11801

EN 50173-5

EN 50288-4-2

Prod
