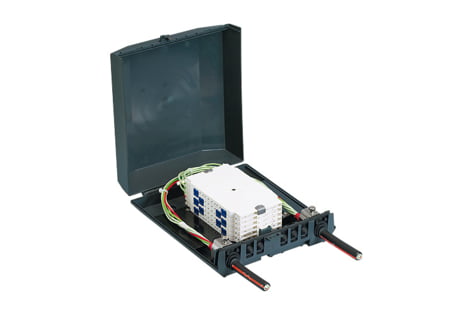

Venus Box FLA with Lock, splicing through (R310761)

Venus Box FLA with Lock, splicing through (R310761)

Venus Box FLA with Lock, splicing through (R310761)

Venus Box suitable for cable-to-cable splicing fitted with 1 splice tray R30.

Max. capacity: 4 splice trays R30.

Protection class: IP54.

Артикул: R310761 Категорія:

Scope of supply

  • Venus Box incl. cylinder lock and key

  • Base plate

  • Groundingclamp

  • 1 splice tray R30 incl. cover

  • 2 L.E. cable entry plugs for cables of Ø 10 to 25 mm

  • 2 quick installer clampsfor L.E. cables

  • Cable entry plug for 5 cables of Ø 5 to 13 mm

  • Installation instructions

Mechanical Data

Dimensions

258.0 mm x 234.0 mm x 83.5 mm / 10.157 in x 9.213 in x 3.287 in (W x H x D)

Color Code RAL

7016 Anthracite gray

Material

plastic: ASA, UV stabilized

Technical Data

Distributor housing type

small distributor

Lockable

Yes
