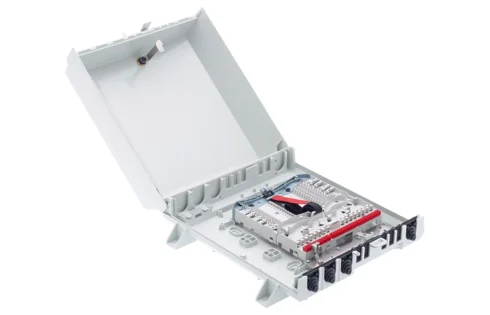

Venus Box FLA2-SCM with Lock, 144 splices, gray (R809775)

Venus Box FLA2-SCM with Lock, 144 splices, gray (R809775)

Venus Box with external fastening points, equipped with holder module for SCM splice or splitter trays. Allows cable-to-cable splicing and is ideal for fine distribution.

Max. capacity: 12 SC or 6 SE splice trays.

Protection class: IP43 / IP54.

Артикул: R809775 Категорія:

Scope of supply

  • Venus Box with cylinder lock and key

  • Holder module for SCM splice trays

  • Fiber divider, small

  • Fiber crossover

  • Cover kit SCM with tray hold-up bracket and fiber-dressing pen

  • 4 cable entry plugs for cables between Ø 10 and 25 mm

  • Cable entry plugs for 5x cables between Ø 5 and 13 mm

  • Cable clamp, large

  • Central strength member clamp 1-part

  • Cable tie

  • Installation instructions

Mechanical Data

Dimensions

333.0 mm x 369.0 mm x 150.0 mm / 13.11 in x 14.528 in x 5.906 in (W x H x D)

Color Code RAL

7035 Light gray

Material

plastic: ASA, UV stabilized

Technical Data

Distributor housing type

small distributor

Version

splice

Lockable

Yes

Інструкції з встановлення

Завантажити
