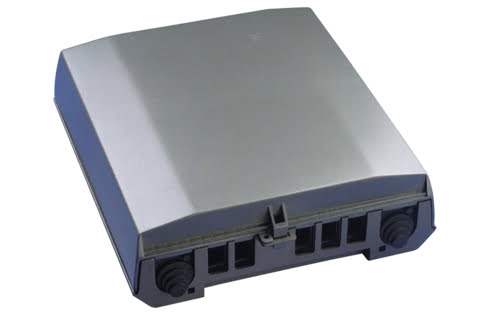

Venus Box HLA without Lock, hybrid (R309816)

Venus Box HLA without Lock, hybrid (R309816)

Venus Box HLA without Lock, hybrid (R309816)

To be fitted with fiberoptics and 10-pair VS Compact modules. Can be equipped with protection components.

Max. capacity: 12 fibers (splicing through) and 5 x 10-pair (50 pairs) with VS Compact modules.

Protection class: IP54.

Артикул: R309816 Категорія:

Scope of supply

  • Venus Box HLA

  • Rear panel to be fitted with FO and connector modules

  • Splice tray R30

  • Grounding clamp

  • 2 L.E. cable entry plugs for cables of Ø 10-25 mm

  • Cable entry plug CLA

  • Installation instructions

Mechanical Data

Dimensions

258.0 mm x 234.0 mm x 83.5 mm / 10.157 in x 9.213 in x 3.287 in (W x H x D)

Color Code RAL

7016 Anthracite gray

Material

plastic: ASA, UV stabilized

Technical Data

Application area

wall-mounting (WM)

Distributor housing type

small distributor

VS system

hybrid
