WM FiberOutlet, 2/1xE-2000™ APC, green, G657A red, ceramic, C/1 (R515897)

WM FiberOutlet, 2/1xE-2000™ APC, green, G657A red, ceramic, C/1 (R515897)

WM FiberOutlet, 2/1xE-2000™ APC, green, G657A red, ceramic, C/1 (R515897)

Ready for splicing with 1 E-2000™ adapter (with integrated self-closing metal laser protection flaps), 1 E-2000™ pigtail (600 µm fibers) included.

Color: purewhite (RAL 9010).

Dimensions: 88 x 88 x 22 mm.

Артикул: R515897 Категорія:

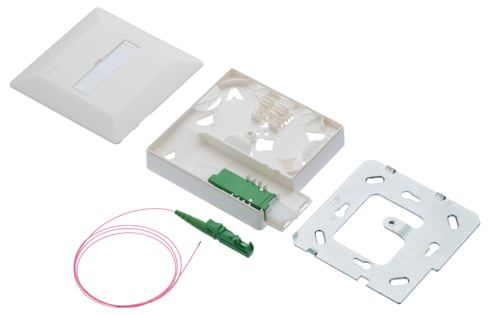

Scope of supply

  • Outlet

  • Mounting plate, metal

  • 1 E-2000™ adapter, green, ceramic, complete

  • 1 pigtail E-2000™ APC, green, G.657.A red, 0.7 m

  • Splice holder for 4 shrink (Ø 2.4 - 2.6mm shrinked condition) or ANT splices

  • 2 hinged dust covers, white

  • Cable tie

  • Installation instructions

Mechanical Data

Dimensions

88.0 mm x 88.0 mm x 22.0 mm / 3.465 in x 3.465 in x 0.866 in (W x H x D)

Material

plastic: PC + ABS

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

1

Connector type (A)

E-2000™

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Application area

surface-mounting (SM)&(FM)

Adapter fastening method

end cap snap-in

Assembly

partly populated

Outlet type

outlet

Sleeve material

ceramic

Version

splice
