WM Hybrid Outlet, 2/2xLC-Duplex APC, green, G657A red/yellow, ceramic, C (R509494)

WM Hybrid Outlet, 2/2xLC-Duplex APC, green, G657A red/yellow, ceramic, C (R509494)

WM Hybrid Outlet, 2/2xLC-Duplex APC, green, G657A red/yellow, ceramic, C (R509494)

Ready for splicing with 2 LC-Duplex adapters (with integrated self-closing metal laser protection flaps), 2 LC pigtails included. Splice tray with splice holder and strain relief for 600 µm fibers.

Color: pure white (RAL 9010).

Dimensions: 88 x 88 x 15/33 mm.

Артикул: R509494 Категорія:

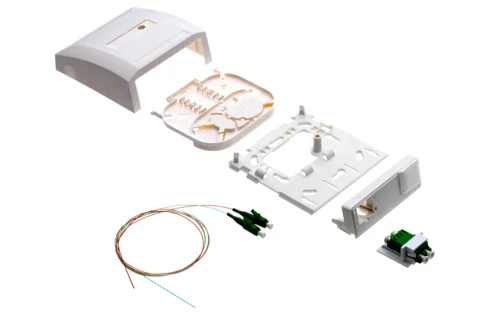

Scope of supply

  • Outlet

  • 2 LC-Duplex adapters, green, ceramic, complete

  • 1 pigtail LC APC, green, G.657.A red, 0.7 m

  • 1 pigtail LC APC, green, G.657.A yellow, 0.7 m

  • 1 splice tray with splice holder for 4 shrink (Ø 2.4 - 2.6mm shrinked condition) or ANT splices

  • 2 splash caps, white

  • Installation instructions

Mechanical Data

Dimensions

88.0 mm x 88.0 mm x 33.0 mm / 3.465 in x 3.465 in x 1.299 in (W x H x D)

Color Code RAL

9010 Pure white

Material

plastic: PC + ABS

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

2

Connector type (A)

LC-Duplex

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Attenuation grade IL (A)

C

Application area

surface-mounting (SM)&(FM)

Adapter fastening method

end cap snap-in

Assembly

fully populated

Outlet type

outlet

Holder for connector / module

Module holder

Sleeve material

ceramic

Version

splice

Інструкції з встановлення

Завантажити
