Connector E-2000™ PC, SM, blue, 125.2 (+0.5/-0) µm (R847356)

Semi-tight buffer Ø 0.9 mm with a strippability of more than 150cm and one side fitted with E-2000™ connector. Connector E-2000™ with self-closing dust- and laser shutter

Connector E-2000™ PC, SM, blue, 126 (+1/-0) µm (R847357)

Semi-tight buffer Ø 0.9 mm with a strippability of more than 150cm and one side fitted with E-2000™ connector. Connector E-2000™ with self-closing dust- and laser shutter

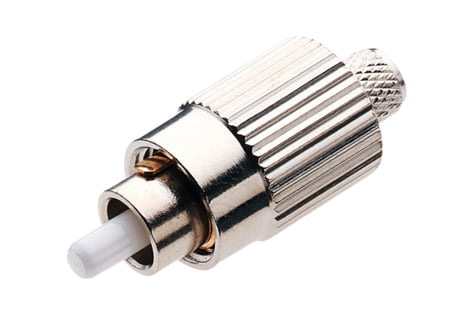

Connector FC APC, SM, 125.5 (+1/-0) µm (R510784)

Mechanical Data Diameter 125.5000000000 μm Technical Data Fiber type Singlemode (SM) Number of connectors (A) 1 Connector type (A) FC Connector color (A) metallic Polishing plug (A) APC 8° Protection class IP (A) IP 20 Attenuation grade IL (A) C Connector class connector Standard according to IEC 61754-4

Connector FC PC, MM, 126.0 (+1/-0) µm (R510782)

Mechanical Data Diameter 126.0000000000 μm Technical Data Fiber type Multimode (MM) Number of connectors (A) 1 Connector type (A) FC Connector color (A) metallic Polishing plug (A) PC Protection class IP (A) IP 20 Attenuation grade IL (A) Bm Connector class connector

Connector FC PC, SM, 126.0 (+1/-0) µm (R510783)

Mechanical Data Diameter 126.0000000000 μm Technical Data Fiber type Singlemode (SM) Number of connectors (A) 1 Connector type (A) FC Connector color (A) metallic Polishing plug (A) PC Protection class IP (A) IP 20 Attenuation grade IL (A) C Connector class connector Standard according to IEC 61754-4

Connector IP67, type 06, black, SC-RJ APC, SM, black, 126.0 (+1/-0) µm (R803946)

Connector set with SC-RJ APC plug und housing IP67, type 06. Crimp set (Boot for Industrial cable and crimp sleeve for connector) not included in connector set. Plug color: black. Fiber: SM G.652.D/G.657.A1 (OS1, OS2). Ferrule: inner Ø 126 µm, tol. +1µm/0.

Connector IP67, type 06, black, SC-RJ PC, MM, black, 127.0 (+3/-0) µm (R315008)

Connector set with SC-RJ PC plug and housing IP67, type 06. Crimp set (Boot for Industrial cable and crimp sleeve for connector) not included in connector set.

Plug color: black.

Fiber: MM G50/125, G62.5/125 (OM4-OM1).

Ferrule: inner Ø 127 µm, tol. +3µm/0.

Connector IP67, type 06, black, SC-RJ PC, SM, black, 126.0 (+1/-0) µm (R315009)

Connector set with SC-RJ PC plug und housing IP67, type 06. Crimp set (Boot for Industrial cable and crimp sleeve for connector) not included in connector set.
Plug color: black.
Fiber: SM G.652.D/G.657.A1 (OS1, OS2).
Ferrule: inner Ø 126 µm, tol. +1µm/0.
