Connector IP67, type 06, black, SC-RJ PC, MM, black, 127.0 (+3/-0) µm (R315008)

Name: Connector IP67, type 06, black, SC-RJ PC, MM, black, 127.0 (+3/-0) µm (R315008) - ДП "Сінергія"
SKU: R315008

Connector IP67, type 06, black, SC-RJ PC, MM, black, 127.0 (+3/-0) µm (R315008)

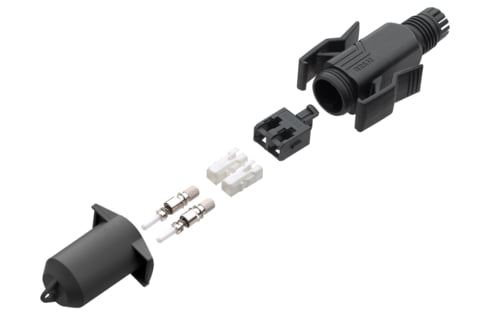

Connector set with SC-RJ PC plug and housing IP67, type 06. Crimp set (Boot for Industrial cable and crimp sleeve for connector) not included in connector set.

Plug color: black.

Fiber: MM G50/125, G62.5/125 (OM4-OM1).

Ferrule: inner Ø 127 µm, tol. +3µm/0.

Артикул: R315008 Категорія: Misc

Scope of supply

SC interior housing incl. ferrule pre assembled
SC-RJ connector housing
Housing IP67, type 06, black
Instruction manual

Technical Data

Fiber type	Multimode (MM)
Connector type (A)	SC-RJ
Connector color (A)	black
Polishing plug (A)	PC
Attenuation grade IL (A)	Bm
Connector class	connector
Standard	UL Listed
