Netscale 72 adapter cassettes are pass-through inserts with SC adapters. The SC trunk cables connect at the rear of the adapter cassettes.
From the front side, various options are possible, ranging from SC patch cords for equipment connections over harness cables to cross-connection used in main distribution areas (MDA).
Netscale 72 adapter cassettes are available as Base-12 versions with 6 ports and Base-8 versions with 4 ports for multimode and singlemode applications.
Like all Netscale 72 inserts, the adapter cassettes are compatible with the RFID-sensor system of inteliPhy.

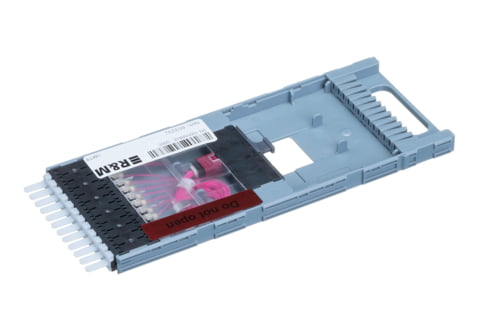

Netscale 72 adapter cassettes are pass-through inserts with LC-Duplex adapters. The LC trunk cables connect at the rear of the adapter cassettes.
From the front side, various options are possible, ranging from LC-duplex patch cords for equipment connections over harness cables to cross-connection used in main distribution areas (MDA).
Netscale 72 adapter cassettes are available as Base-12 versions with6 ports and Base-8 versions with 4 ports for multimode and singlemode applications.
Like all Netscale 72 inserts, the adapter cassettes are compatible with the RFID-sensor system of inteliPhy.

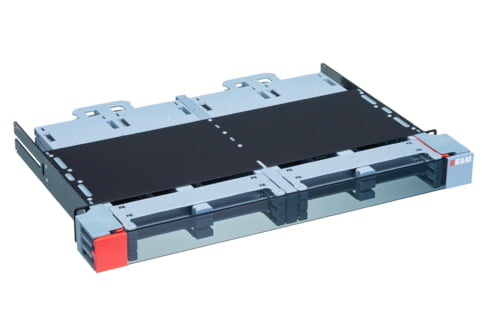

Netscale 72 housings mount in 19-in racks or cabinets and provide best-in-class ultra-high-density connectivity when combined with Netscale 72 modules and cassettes.
The unique design of Netscale 72 housings include sliding trays enabling module or cassette installation from the rear of the housing. The split tray feature allows each half of the tray to be pulled out independently, protecting connections from disruption.

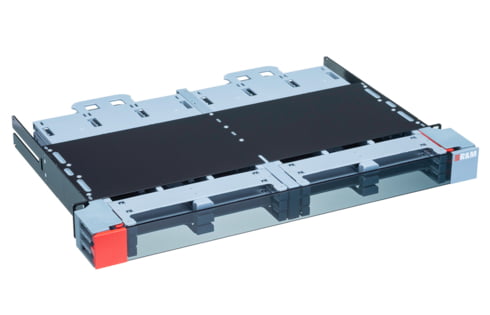

Netscale 72 housings mount in 19-in racks or cabinets and provide best-in-class ultra-high-density connectivity when combined with Netscale 72 modules and cassettes.
The unique design of Netscale 72 housings include sliding trays enabling module or cassette installation from the rear of the housing. The split tray feature allows each half of the tray to be pulled out independently, protecting connections from disruption.
Netscale 72 housings mount in 19-in racks or cabinets and provide best-in-class ultra-high-density connectivity when combined with Netscale 72 modules and cassettes.
The unique design of Netscale 72 housings include sliding trays enabling module or cassette installation from the rear of the housing. The split tray feature allows each half of the tray to be pulled out independently, protecting connections from disruption.
Netscale 72 MPO-to-LC modules provide the interface between the male MPO connectors on the trunk and the LC-Duplex patch cords that will then connect directly into the transceiver modules. It can either come as Base-12 or native Base-8 backbone type, containing six, four LC-Duplex ports respectively.
The LC-Duplex ports feature integrated laser shutters that move out of the way when the connector is inserted. The internal wiring of the module is based on universal polarity to ensure the correct fiber polarity while requiring just one type of patch cord on both ends of the link.
The crossover of the fibers for duplex signal transmission takes place within the module. The connectivity diagram for the trunk cable and patch cord remains the same all the time.
The MPO-to-LC modules are easily swappable with MPO cassettes to migrate to MPO ports for parallel optics.
Netscale 72 MPO-to-LC modules provide the interface between the male MPO connectors on the trunk and the LC-Duplex patch cords that will then connect directly into the transceiver modules. It can either come as Base-12 or native Base-8 backbone type, containing six, four LC-Duplex ports respectively.
The LC-Duplex ports feature integrated laser shutters that move out of the way when the connector is inserted. The internal wiring of the module is based on universal polarity to ensure the correct fiber polarity while requiring just one type of patch cord on both ends of the link.
The crossover of the fibers for duplex signal transmission takes place within the module. The connectivity diagram for the trunk cable and patch cord remains the same all the time.
The MPO-to-LC modules are easily swappable with MPO cassettes to migrate to MPO ports for parallel optics.
Netscale 72 MPO-to-LC modules provide the interface between the male MPO connectors on the trunk and the LC-Duplex patch cords that will then connect directly into the transceiver modules. It can either come as Base-12 or native Base-8 backbone type, containing six, four LC-Duplex ports respectively.
The LC-Duplex ports feature integrated laser shutters that move out of the way when the connector is inserted. The internal wiring of the module is based on universal polarity to ensure the correct fiber polarity while requiring just one type of patch cord on both ends of the link.
The crossover of the fibers for duplex signal transmission takes place within the module. The connectivity diagram for the trunk cable and patch cord remains the same all the time.
The MPO-to-LC modules are easily swappable with MPO cassettes to migrate to MPO ports for parallel optics.
