19" 1U Angled Patch Panel 24-Port, Snap-in, black, empty (R511997)

Name: 19" 1U Angled Patch Panel 24-Port, Snap-in, black, empty (R511997) - ДП "Сінергія"
SKU: R511997

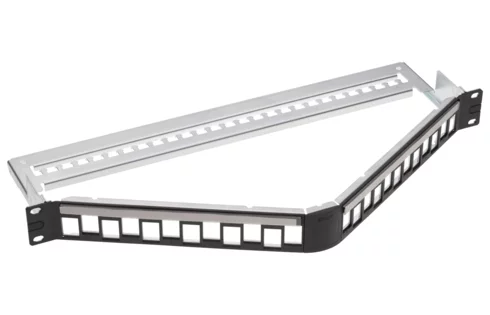

19" 1U Angled Patch Panel 24-Port, Snap-in, black, empty (R511997)

With a capacity of up to 24 Snap-in connection modules shielded or unshielded.

Артикул: R511997 Категорія: 1U, 24-Ports, angled

Scope of supply

19" 1U 24-port angled, metal patch panel, empty, integrated cable tie shelf
19" mounting kit
Labeling kit
Installation instructions

Mechanical Data

Dimensions	482.6 mm x 43.2 mm x 245.3 mm / 19 in x 1.701 in x 9.657 in (W x H x D)
Color	steel, blue, chromatized / front, black (RAL 9005)
Material	steel: DC01 (1.0330), 1.5 mm

Technical Data

Amount of height units	1 U
Rack mounting version	sub-rack
Assembly	empty
Holder for connector / module	Snap-in frame
Capacity (ports)	24
Standard	UL Listed
Amount of height units	1
Fastening	19 "

Angled patch panel with integrated cable tie shelf, optional direct grounding, 19" fastening kit, labeling field, accepting the snap-in type color coding clips in 8 colors. Material: sub-rack made of sheet steel (DC01) 1.5 mm, color blue chromatized, screen made of plastic (ABS), halogen-free, color jet black (RAL 9005).

With a capacity of up to 24 shielded or unshielded RJ45 connection modules of Category 5, class D, Category 6, class E, Real10 Category 6 and Category 6
_A
, class E
_Afor establishing transmission channels with up to 4 plugged connections.

Інструкції з встановлення

Завантажити
