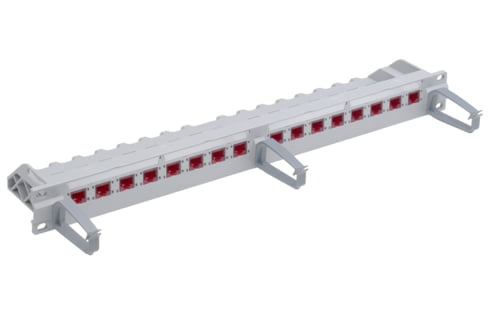

19" 1U Patch Panel 16xRJ45/u, Cat. 6A, fully populated (R509881)

19" 1U Patch Panel 16xRJ45/u, Cat. 6A, fully populated (R509881)

19" 1U Patch Panel 16xRJ45/u, Cat. 6A, fully populated (R509881)

Артикул: R509881 Категорія:

Scope of supply

  • 19" 1U 16-port patch panel, empty, unshielded

  • 16 connection modules Cat.6A ISO, RJ45/uincl. dust covers

  • 19" mounting kit

  • 3 jumpering brackets

  • 4 labeling strips

  • Cable ties

  • Installation instruction

Mechanical Data


482.2 mm x 43.2 mm x 106.0 mm / 18.984 in x 1.701 in x 4.173 in (W x H x D)

Color Code NCS

S 2502-B


plastic: PC, fiber-glass reinforced

Technical Data

Number of connectors (A)


Category connector (A)

Cat. 6A ISO

Connector type (A)


Shielding connector (A)




Amount of height units

1 U

Rack mounting version

patch panel


fully populated

Holder for connector / module

Mounting plate

Capacity (ports)



IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

EN 50173-1

Amount of height units



19 "

Patch panel with integrated cable tie shelf, 19" fastening kit, labeling field, integral cable guiding on the same height unit, designed to accommodate the R&M security and the R&M environment system, halogen-free materials, color patch panel medium gray (NCS 2502-B), jumpering bracket gray (RAL 7000).

16 ports populated with

RJ45 connection module of Cat. 6
ISO, for the setting up of transmission channels of Class E
with up to 4 plugged connectionsacc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
requirements of the standards ISO/IEC 11801, EN 50173-1, as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pairtermination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6
AISO, unshielded, with dust cover, mounting plate, cable tie and installation instructions.
