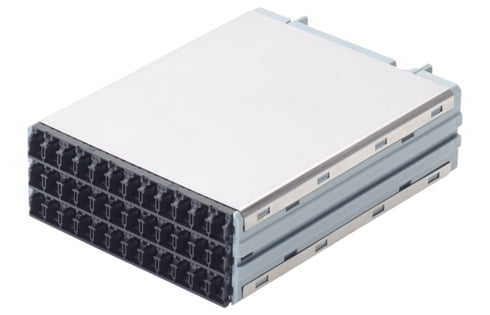

Netscale MPO-LC-duplex 18 ports OM4 type S (R832182)

Netscale MPO-LC-duplex 18 ports OM4 type S (R832182)

Netscale MPO-LC-duplex 18 ports OM4 type S (R832182)

Netscale LC-Duplex to MPO modules provide the interface between the male MPO connectors on the trunk and the LC-Duplex patch cords that will then connect directly into the transceiver modules. The LC-Duplex ports feature integrated laser shutters that move out of the way when the connector is inserted. R&M’s Type S LC-Duplex to MPO modules ensure correct fi ber polarity while requiring just one type of patch cord on both ends of the link. The crossover of the fi bers for duplex signal transmission takes place within the module.

Артикул: R832182 Категорія:

Scope of supply

  • Slide-in unit,

  • labeling strips

  • installation instructions

Mechanical Data


80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D)

Color Code RAL

7000 Squirrel gray


plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class


Fiber diameter

G50 / 125 µm

Number of connectors (A)


Connector type (A)

MPO, female

Connector color (A)


Polishing plug (A)


Return loss (RL)

≥ 35 dB

Insertion loss (IL) max. value

≤ 0.35 dB

Wiring diagram

type S

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in


fully populated

Capacity (ports)



MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
