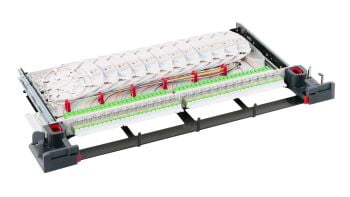

PRIME – 3/4U STU (Single Termination Unit),left (LE)

Артикул: R889322 Категорія:

The 3/4U PRIME STU Single Termination Unit is a splice patch unit for up to 48 fibers.

Inlay supports up to 12 FMTS compact splice trays the tray has an integrated splice protector holder for up to 4 HS or ANT splice protectors.

The fiber feed takes place via the left side and is fully protected. The PRIME-STU is suitable for ETSI and 19”/21” 1U or 3U-PRIME Sub-Racks with back fixation.

Scope of supply

  • 3/4U STU-Unit fully assembled

  • 3 pcs. Cable ties, small

  • 3 pcs. Plastic clip, small

  • 1 pcs. Laser sign, small

  • Installation manual

Environmental Characteristics

Operation temperature

25 °C to 70 °C / +77 °F to +158 °F

Transport / store temperature

40 °C to 85 °C / +104 °F to +185 °F

Mechanical Data

Color

metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)

Material

metal: steel / plastic: PC / ABS (halogen-free, flame-retardant)

Technical Data

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Number of connectors (A)

24

Connector type (A)

E-2000™

Fiber Count

24

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Rack mounting version

PRIME-3U-Sub-rack, ETSI/19" BM

Assembly

fully populated

Mounting frame type

Slide-in unit

Sleeve material

ceramic

Standard

Adapter and connector in acc. with IEC 61754-4

Pigtails in acc. with color code DIN VDE 0888

Halogen free, acid gases

Pass

RoHS

Pass
