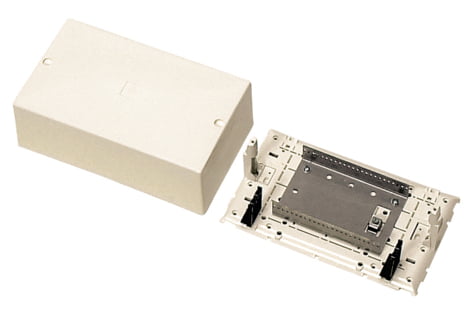

SM Housing 50 pairs (R302916)

SM Housing 50 pairs (R302916)

Can be equipped with protection components.

Артикул: R302916 Категорія:

Scope of supply

  • Bottom part

  • Top part 130 x 80 x 220 mm (WxDxH)

  • Back mount frame for 6 modules 10 pair

  • Clamping bracket M4

  • Screw M4 x 6 mm

  • Serrated lock washer M4

  • 2 screws KA40 x 8 mm

  • 2 washers

  • 2 patching rings, small

  • Duo-adhesive label T+T/neutral 60 x25 mm

  • 2 cable ties, small

  • Installation instructions

Mechanical Data

Dimensions

220.0 mm x 130.0 mm x 80.0 mm / 8.661 in x 5.118 in x 3.15 in (W x H x D)

Color Code RAL

9010 Pure white

Material

plastic: ABS

Technical Data

Number of pairs

Max. 50 DA

Application area

surface-mounting (SM)&(FM)

Distributor housing type

housing

VS system

VS Compact

Інструкції з встановлення

Завантажити
