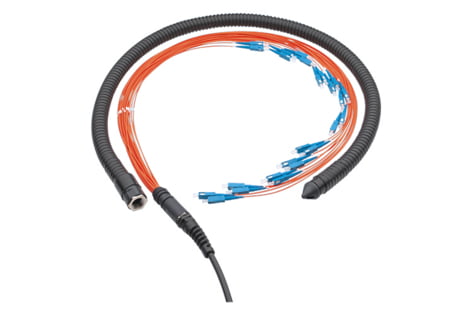

Both sides fitted with SC PC connectors. Pulling tube (IP67) included.
Connector color: beige.
Fiber: MM G50/125 OM3.
Fan-out length: 1150 mm (1U/2U)
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP | IP 20 IP 54 (correlates to NEMA 3S) |
| Connector class | connector |
| Protection class IP (A) | IP 20 |
| Number of connectors (A) | 24 |
| Protection class IP (B) | IP 20 |
| Number of connectors (B) | 24 |
| Cable type | VARIOline cable |
| Jacket material | LSZH |
| Cable jacket characteristics | Cable, water-tight Cable, metal-free Zero-halogen |
| Cable overall diameter | 7.0 mm |
| Connector type (A) | SC |
| Polishing plug (A) | PC |
| Attenuation grade IL (A) | Bm |
| Return loss grade RL (A) | 3 |
| Connector color (A) | beige |
| Connector type (B) | SC |
| Polishing plug (B) | PC |
| Attenuation grade IL (B) | Bm |
| Return loss grade RL (B) | 3 |
| Connector color (B) | beige |
| Fiber type | multimode (MM) |
| Fiber class | OM3 |
| Fiber Count | 24 |
| Conductor type | loose tube, gel-filled |
| Fiber diameter | G50 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 40.0 m / 131 ft |
| Color | green |
Інструкції з встановлення | Завантажити |
