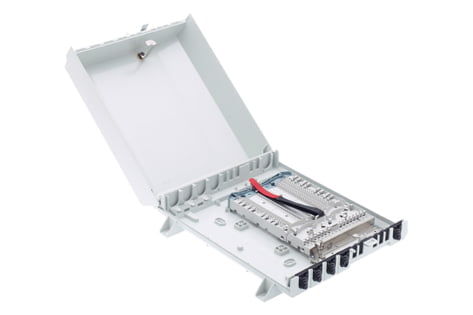

Venus Box FXL-SCM with Lock, 288 splices, gray (R809776)

Venus Box FXL-SCM with Lock, 288 splices, gray (R809776)

Venus Box with external fastening points, equipped with holder module for SCM splice or splitter trays. Allows cable-to-cable splicing and is ideal for fine distribution.

Max. capacity: 24 SC or 12 SE splice trays.

Protection class: IP43 / IP54.

Артикул: R809776 Категорія:

Scope of supply

  • Venus Box with cylinder lock and key

  • 2 holder modules for SCM splice trays

  • Fiber divider, small

  • Fiber crossover

  • Cover kit SCM with tray hold-up bracket and fiber-dressing pen

  • 5 cable entry plugs for cables between Ø 10 and 25 mm

  • Cable entry plugs for 5x cables between Ø 5 and 13 mm

  • Cable clamp, large

  • Central strength member clamp 1-part

  • Cable tie

  • Installation instructions

Mechanical Data

Dimensions

376.0 mm x 446.0 mm x 150.0 mm / 14.803 in x 17.559 in x 5.906 in (W x H x D)

Color Code RAL

7035 Light gray

Material

plastic: ASA, UV stabilized

Technical Data

Distributor housing type

small distributor

Version

splice

Lockable

Yes

Інструкції з встановлення

Завантажити
