Venus Box FXXL-SCM with Lock, 864 splices, gray (R804327)

Venus Box FXXL-SCM with Lock, 864 splices, gray (R804327)

Venus Box with external fastening points, equipped with holder module for SCM splice or splitter trays. Allows cable-to-cable splicing and is ideal for fine distribution.

Max. capacity: 72 SC or 36 SE splice trays.

Protection class: IP43 / IP54.

Артикул: R804327 Категорія:

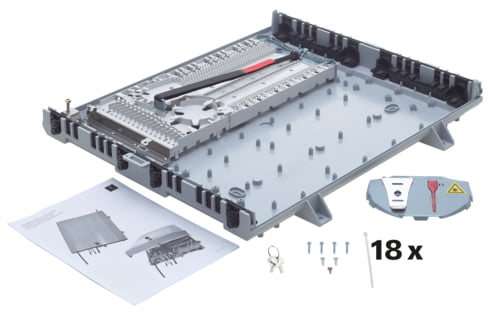

Scope of supply

  • Venus Box with cylinder lock and key

  • 3 holder modules for SCM splice trays

  • Fiber divider, large

  • Fiber crossover

  • Cover kit SCM with tray hold-up bracket and fiber-dressing pen

  • 4 cable entry plugs for cables between Ø 10 and 25 mm

  • 2 cable entry plugs for 5x cables between Ø 5 and 13 mm

  • Cable clamp, large

  • 18 cable ties

  • Installation instructions

Mechanical Data

Dimensions

615.0 mm x 555.0 mm x 150.0 mm / 24.213 in x 21.85 in x 5.906 in (W x H x D)

Color Code RAL

7035 Light gray

Material

plastic: ASA, UV stabilized

Technical Data

Distributor housing type

small distributor

Lockable

Yes
