WM Hybrid Outlet, 2/1xLC-Duplex APC, green, ceramic (R509496)

Name: WM Hybrid Outlet, 2/1xLC-Duplex APC, green, ceramic (R509496) - ДП "Сінергія"
SKU: R509496

WM Hybrid Outlet, 2/1xLC-Duplex APC, green, ceramic (R509496)

Repared for breakout or splicing with LC-Duplex adapter (with integrated self-closing metal laser protection flaps). Splice tray with splice holder and strain relief for 600 µm fibers. Combined through universal adapter with SC, BNC, Chinch and F-Coax. Adapter SC-RJ and connection modul RJ45/u with mounting plate.

Color: pure white (RAL 9010).

Dimensions: 88 x 88 x 15/33 mm.

Артикул: R509496 Категорія: Misc

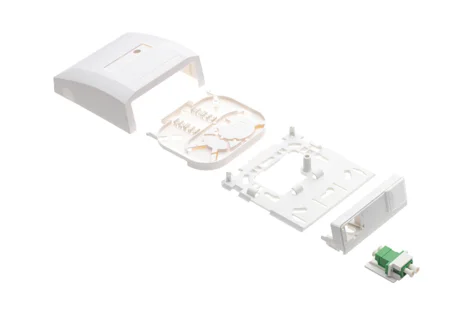

Scope of supply

Outlet
1 LC-Duplex adapter, green, ceramic, complete
1 splice tray with splice holder for 4 shrink (Ø 2.4 - 2.6mm shrinked condition) or ANT splices
1 splash cap, white
1 hinged dust cover, white
Installation instructions

Mechanical Data

Dimensions	88.0 mm x 88.0 mm x 33.0 mm / 3.465 in x 3.465 in x 1.299 in (W x H x D)
Color Code RAL	9010 Pure white
Material	plastic: PC + ABS

Technical Data

Fiber type	Singlemode (SM)
Number of connectors (A)	1
Connector type (A)	LC-Duplex
Connector color (A)	green
Polishing plug (A)	APC 8°
Protection class IP (A)	IP 20
Application area	surface-mounting (SM)&(FM)
Adapter fastening method	end cap snap-in
Assembly	partly populated
Outlet type	outlet
Holder for connector / module	Module holder
Sleeve material	ceramic
