Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM2, Eca, 1x12-fibers (R314548)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

Sheath: PE, black.

Fiber: multimode (MM) G50/125.

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM2, Eca, 2x12-fibers (R314549)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

Sheath: PE, black.

Fiber: multimode (MM) G50/125.

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM2, Eca, 4x12-fibers (R304212)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

Sheath: PE, black.

Fiber: multimode (MM) G50/125.

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM2, Eca, 6x12-fibers (R314550)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

Sheath: PE, black.

Fiber: multimode (MM) G50/125.

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM2, Eca, 8x12-fibers (R314551)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

Sheath: PE, black.

Fiber: multimode (MM) G50/125.

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM3, 4x12-fibers (R311392)

Mechanical Data Color black Cable length 2,000 m Technical Data Conductor type FO loose tube, gel-filled Fiber type OM3 Fiber diameter G50 / 125 µm Cable type Stranded loose tube cable Jacket material PE Cable jacket characteristics Cable, water-tight Stranding 4 x 12 pairs Cable overall diameter 14.5 mm Fiber Count 48 CPR classification Fca […]

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM3, Eca, 1x12-fibers (R314552)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

  • Sheath: PE, black

  • Fiber: multimode (MM) G50/125

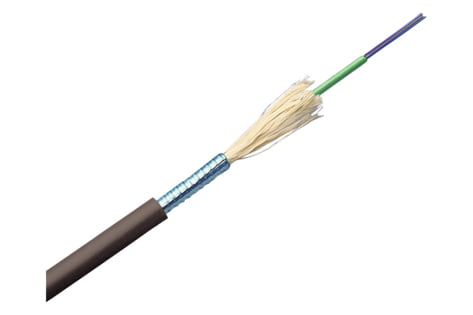

Stranded Loose Tube Cable A-DF(ZN)2YW2Y, OM3, Eca, 2x12-fibers (R314553)

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).

  • Sheath: PE, black

  • Fiber: multimode (MM) G50/125
